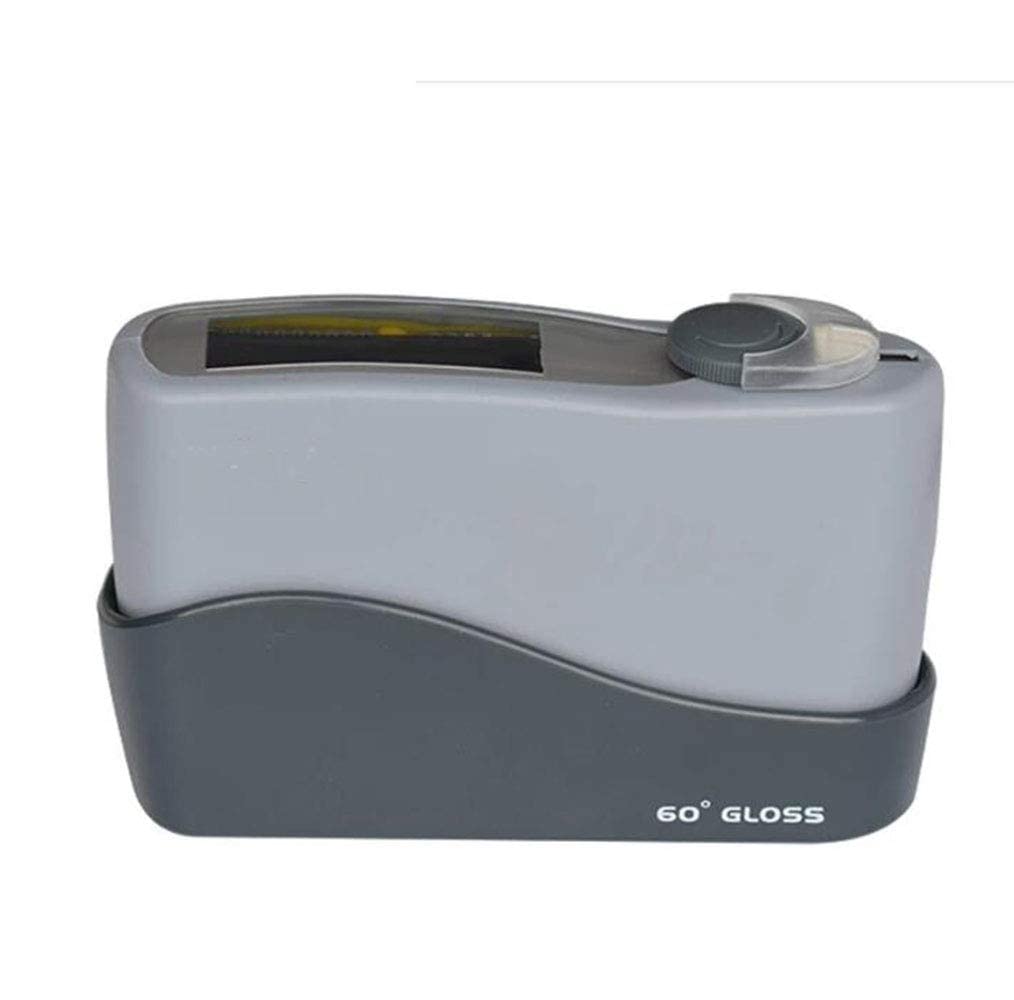

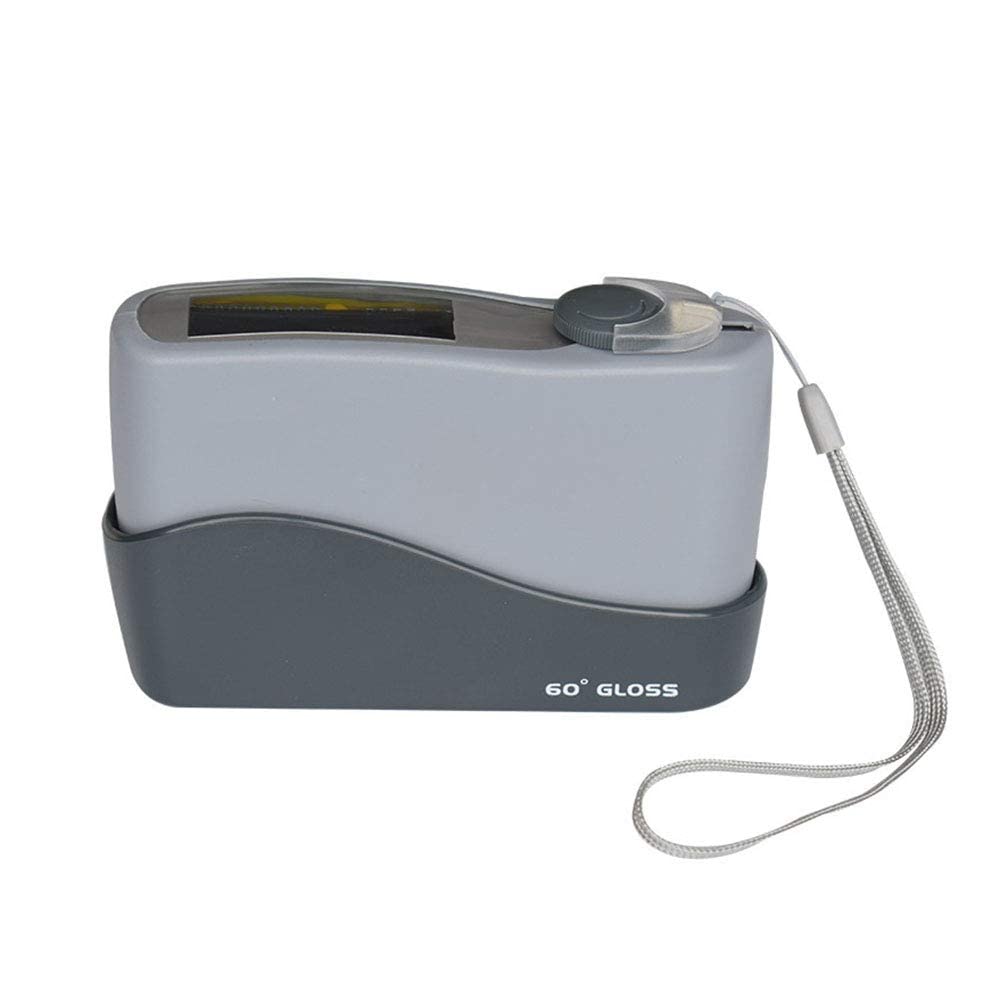

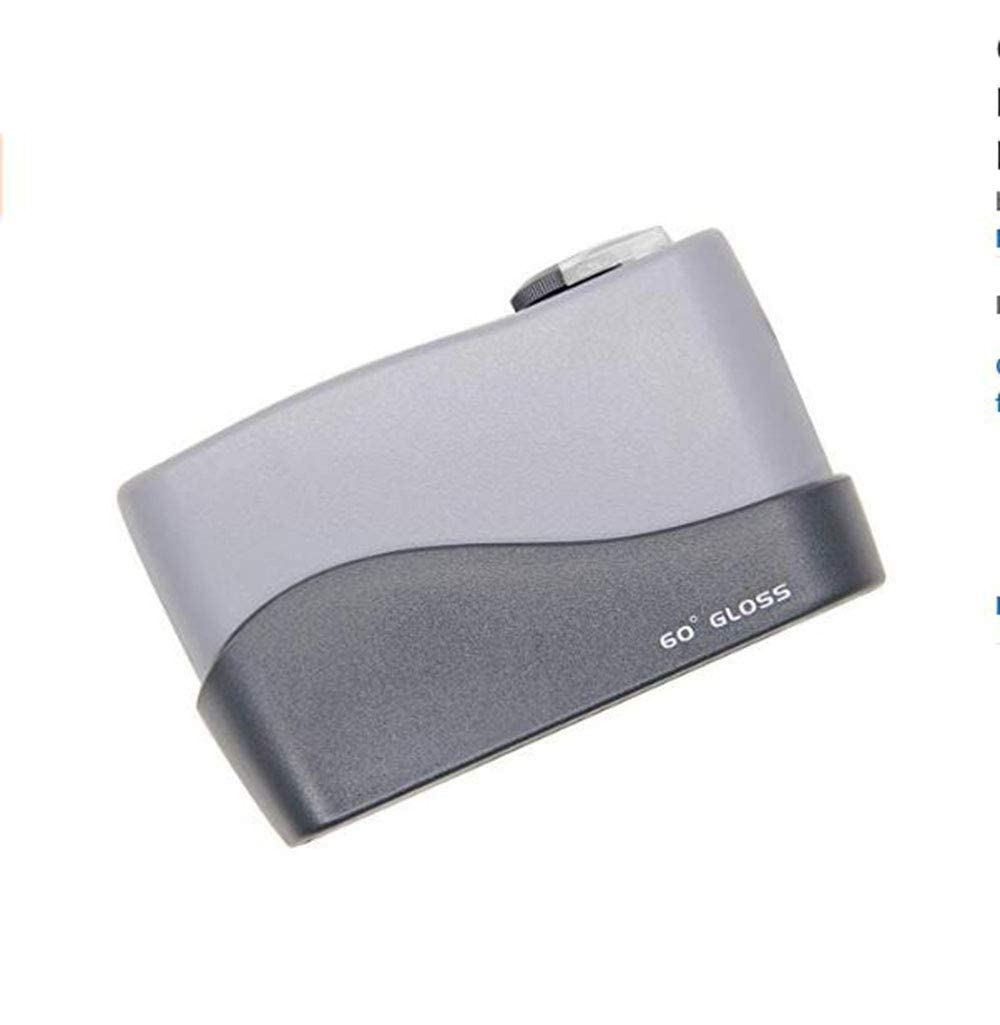

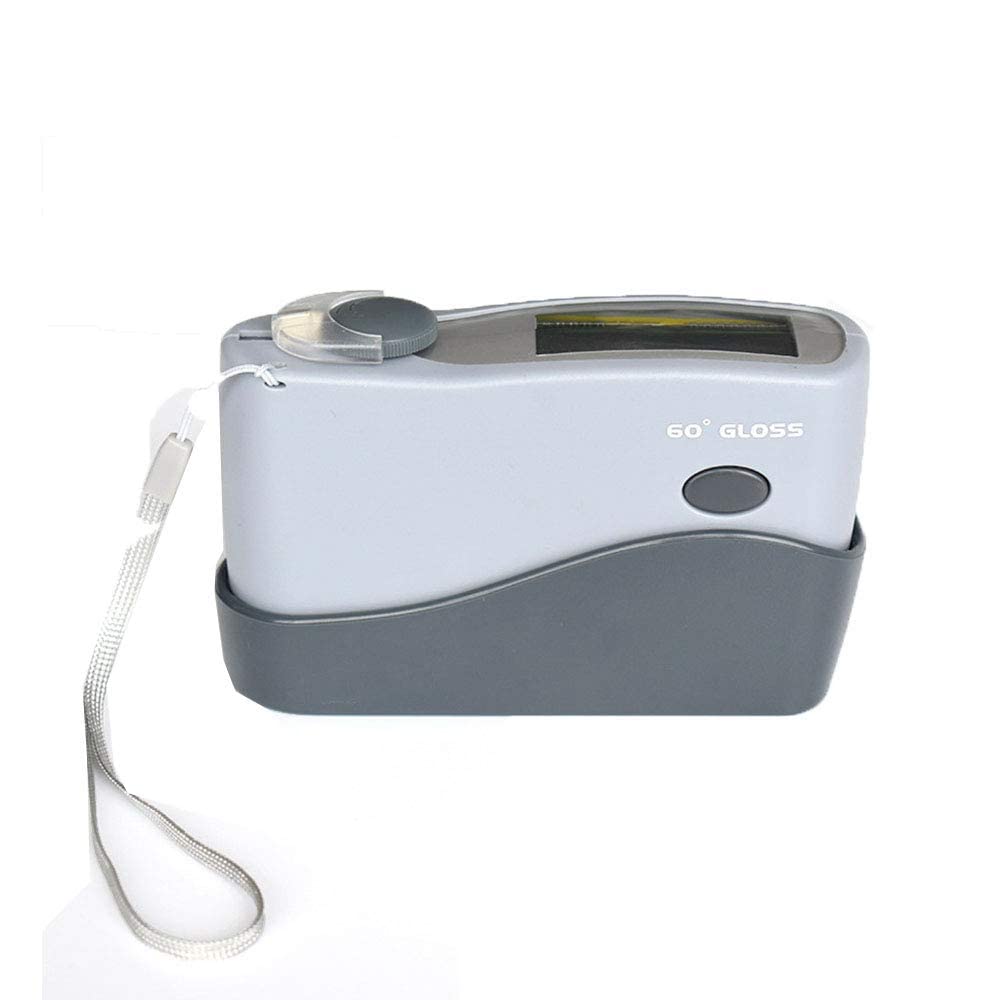

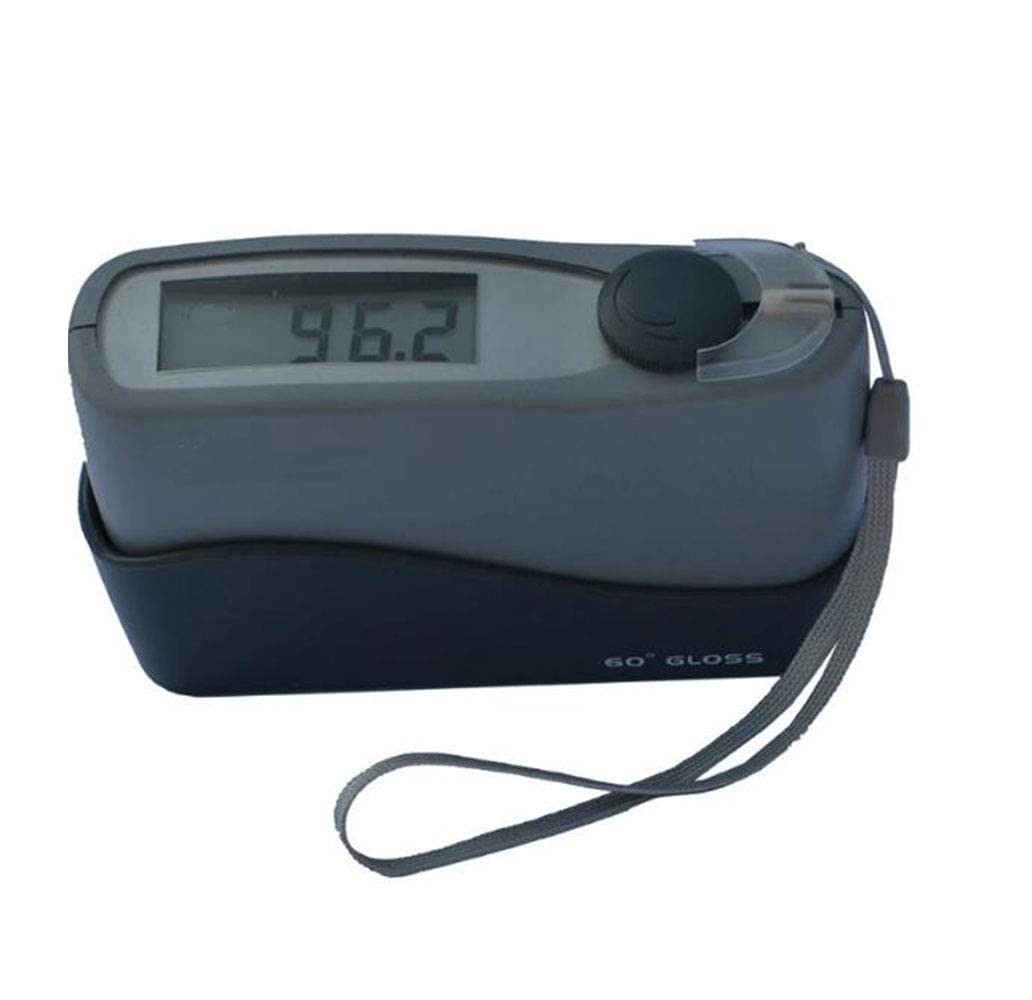

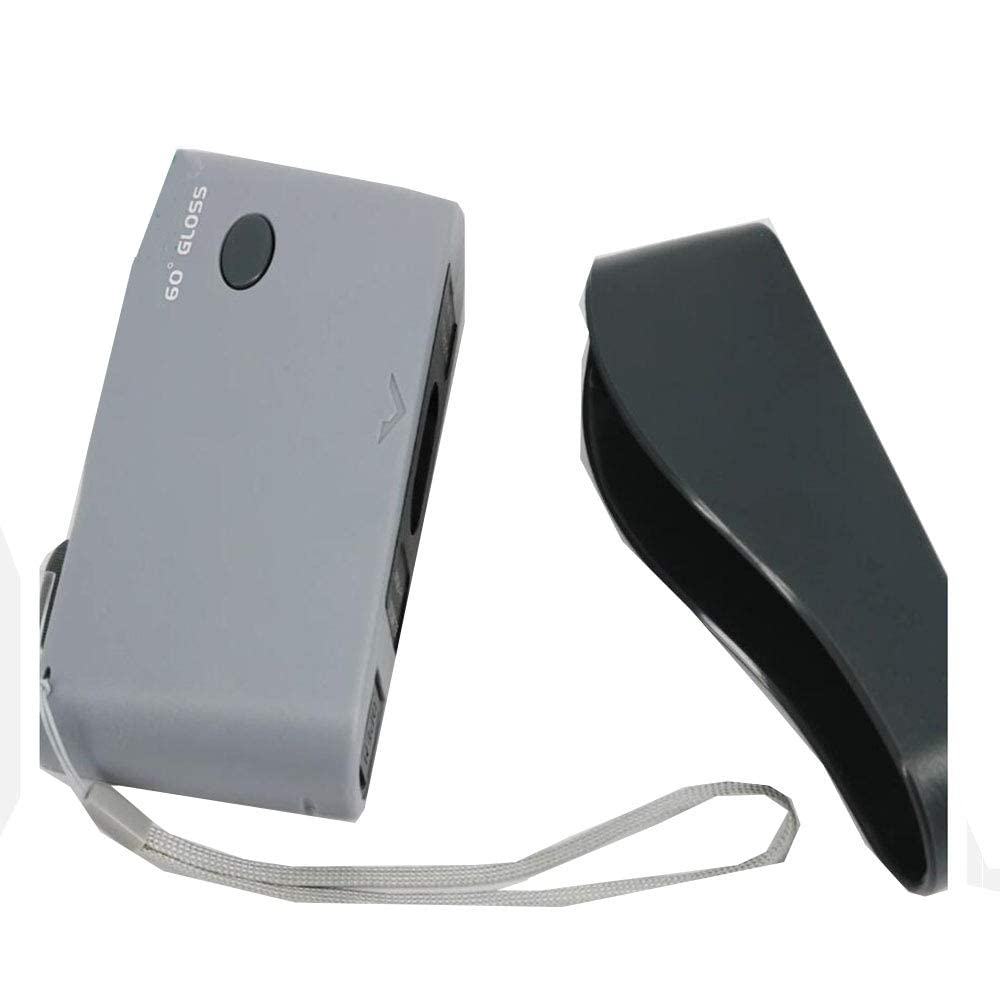

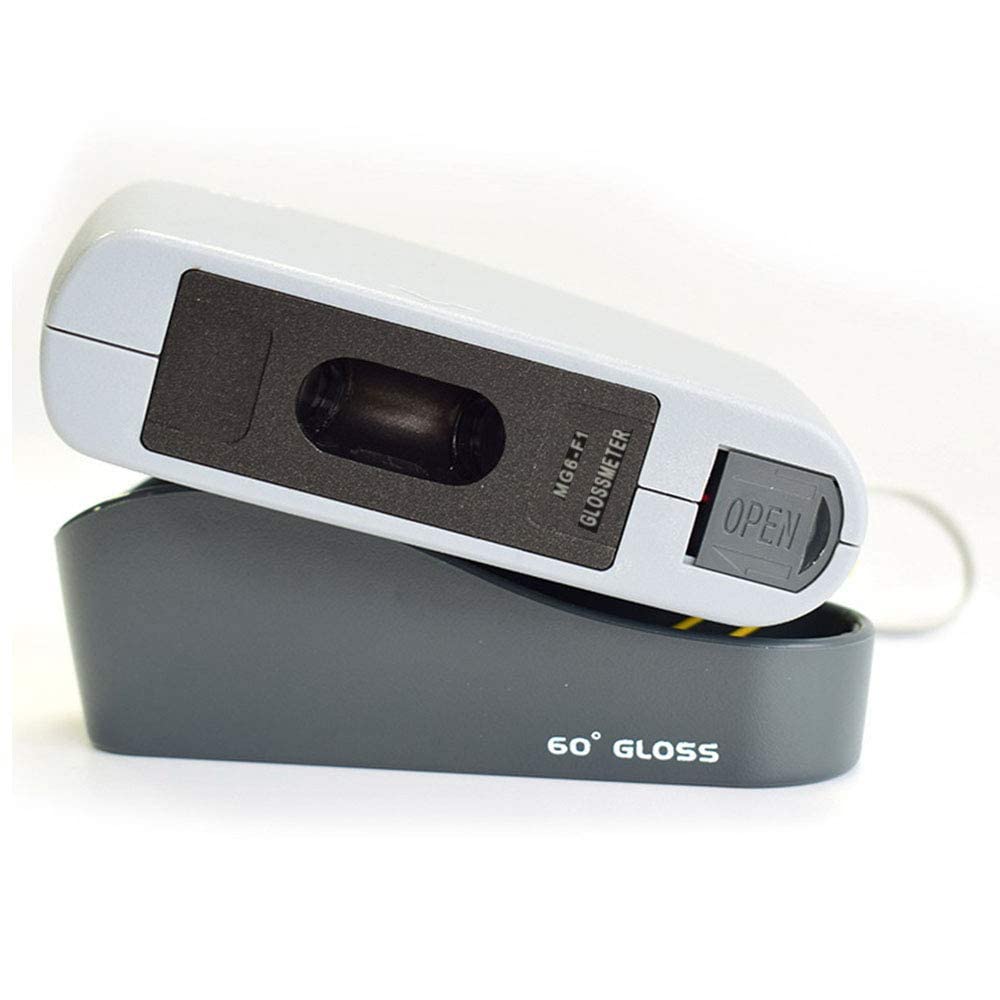

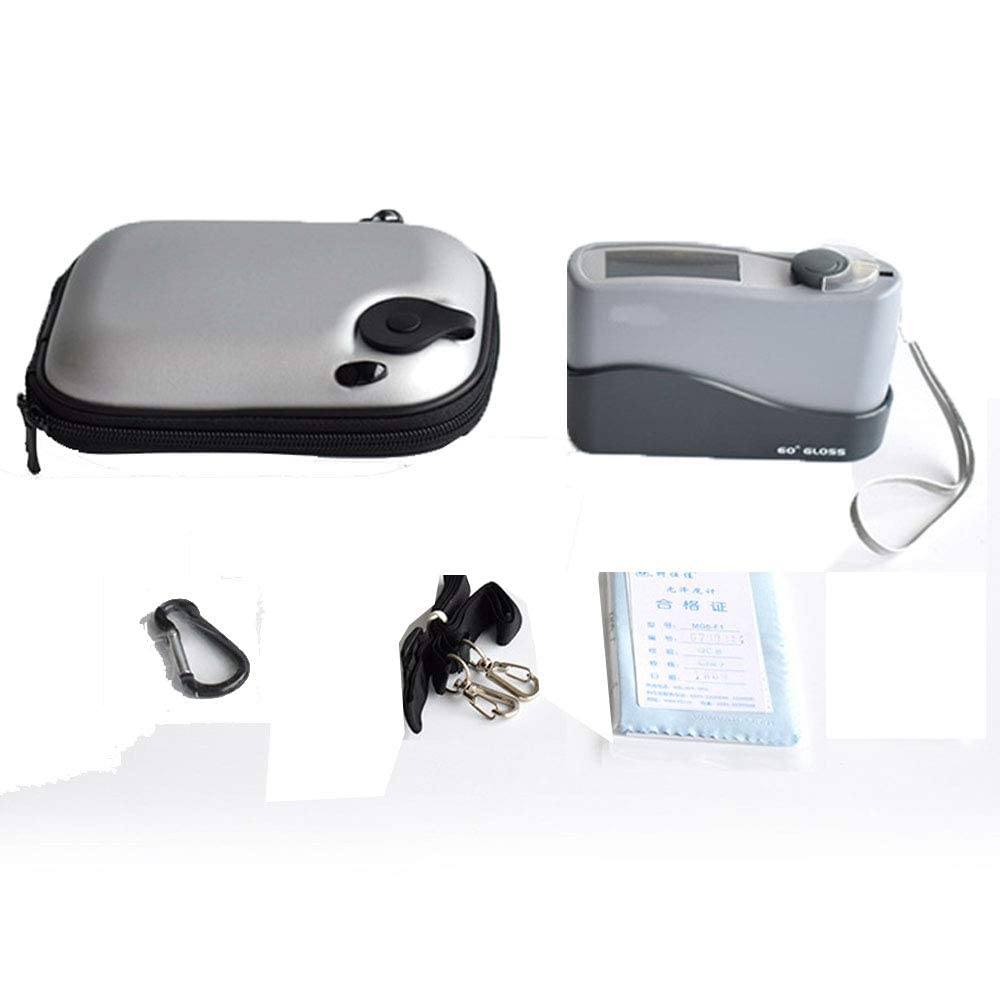

60 Degree Gloss Meter for Paints, Marble, Granite & Plastic - 0.0-199.9GU Range, 0.1GU Resolution | Surface Gloss Tester for Quality Control in Manufacturing & Construction

Product Description

Shipping Policy : Battery Not Included During the Shipping Application: * All kinds of coating and finishing surfaces, such as paints, varnishes, printing ink, etc. * Decorative materials, such as marble, granite, polishing brick, ceramic tile and so on. * The other kinds of materials and objects, such as plastic, woodenware, paper, etc. Technical Specifications * Reading Range: 0.0～199.9(GU) * Deviation:±1.2(GU) * Resolution: 0.1(GU) * Measuring Area: 20×10(mm2) * Incidence Angle: 60(Deg.) * Volume(L×W×H): 123×38×65(mm) * Main Weight:300g * Power Supply: One AA-size battery（Battery Not Included In the Package） Operational Notes: * The glossmete should be kept clean during operation. Otherwise may cause measurement errors and inaccurate verification. * If the surface of the work board is foggy, dusty or smudged, wipe it off with lens paper or a soft cloth to make the measuring more accuracy. * The measuring port should be attached to the measured surface to avoid external light leakage. If necessary use black light cloth or other cloth to block the light around the measuring spot. * It is recommended to avoid glare environmental measurements. * Calibration and measurement or verification operations should be performed at the same ambient temperature, otherwise too large ambient temperature differences will result in digital offsets. * If the MG6 series gloss meter is not used for a long time, it should be withdrawn from the battery to avoid corrosion and damage to the instrument. Single Angle Gloss Meter Single Angle Gloss Meter Single Angle Gloss Meter Tri-angle Gloss Meter Tri-angle Gloss Meter Tri-angle Gloss Meter Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews — — 5.0 out of 5 stars 1 — — 5.0 out of 5 stars 1 Price $148.00$148.00 $210.00$210.00 $228.00$228.00 $425.00$425.00 $425.00$425.00 $679.00$679.00 Display 2.3 inch white and black screen TFT color 3.5inch display screen Digital Display 4 Digits Backlit LCD TFT 3.5 inch Digital Display Measuring Angle 60° 60° 60° 20, 60 and 85° 20, 60 and 85° 20, 60 and 85° Measuring Range 0~200GU 0~200GU 0.0~199.5GU 0.1 ~ 200 Gu 20°:0~1000GU; 60°:0~1000GU; 85°: 0~160GU 20°:0-2000GU; 60°:0-1000GU; 85°:0-160GU Measuring Area 9X15 9X15 9×18mm 7 x 14 mm(Ellipse) 20°: 10x10; 60°: 9x15; 85°: 5x36 20°: 10x10mm, 60°:9x15mm, 85°:5x18mm Division Value 1GU ±1GU ±1.0GU 1.0 GU 0.1GU 0-1000: 0.1 GU, 1000-2000: 1GU Repeatability 0~100GU:±0.5GU ; 100~200GU:±0.5%GU ±1GU 1.0GU 0.5 GU ± 0.1GU; ± 0.2GU; ± 0.2%GU 0-100:0.2, >100:0.2%GU Data Storage X ✓ X ✓ ✓ ✓
